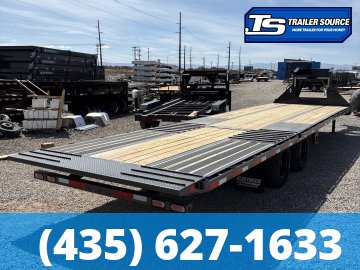

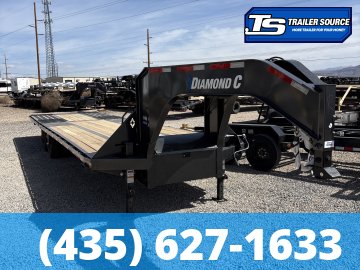

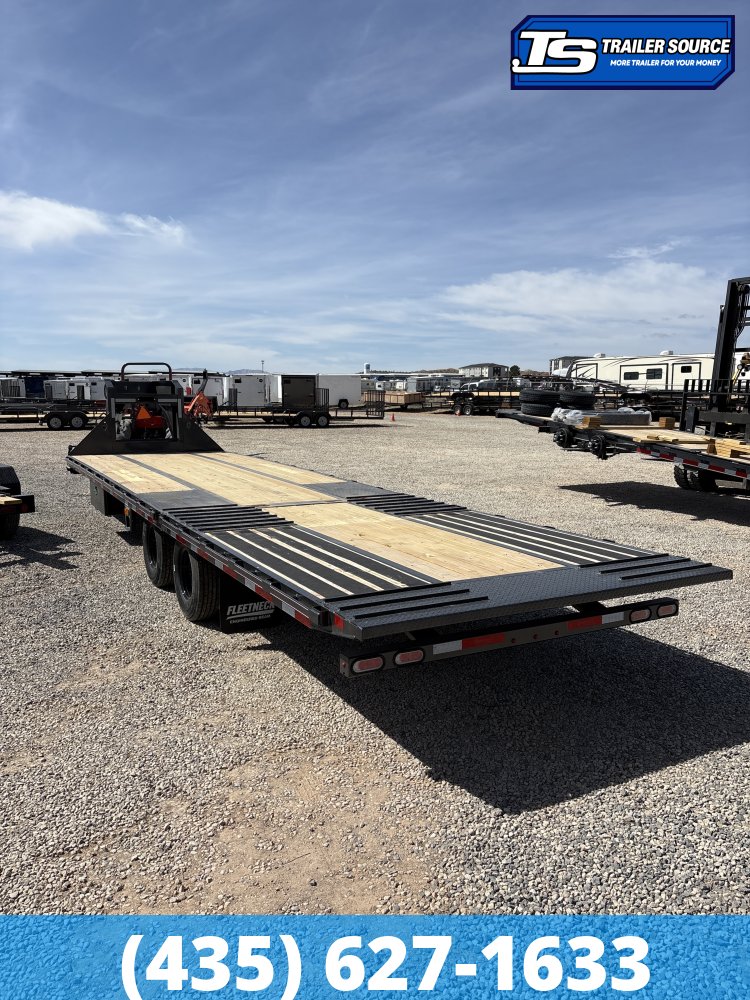

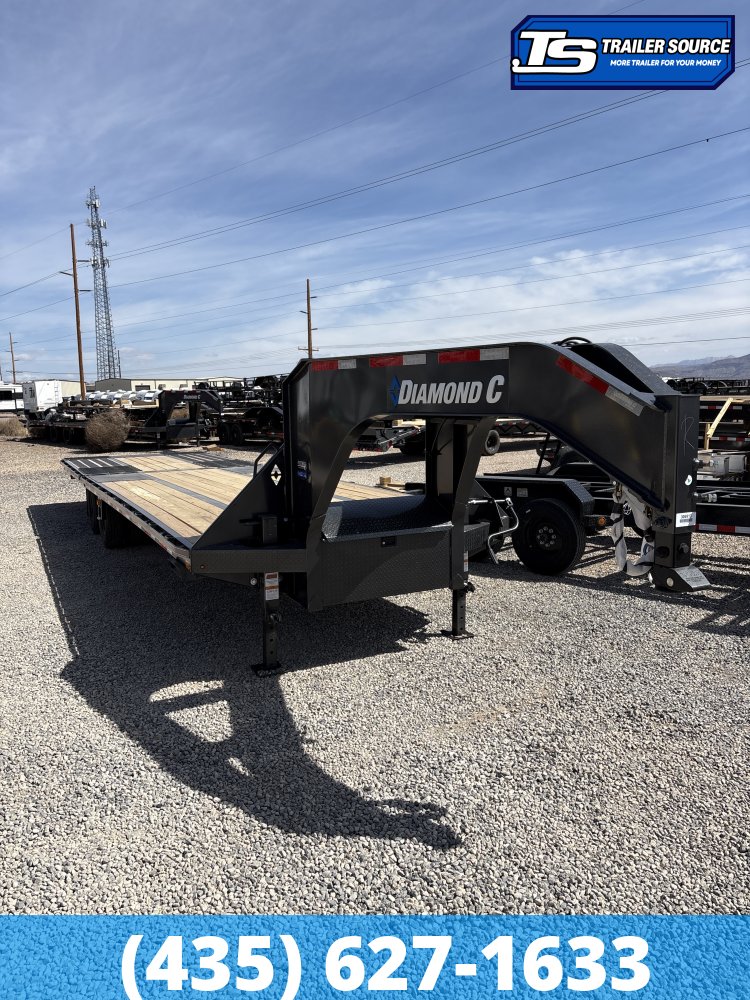

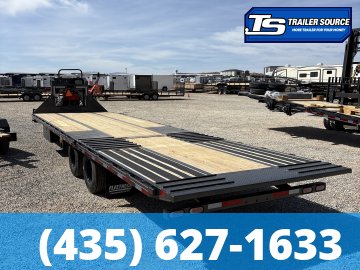

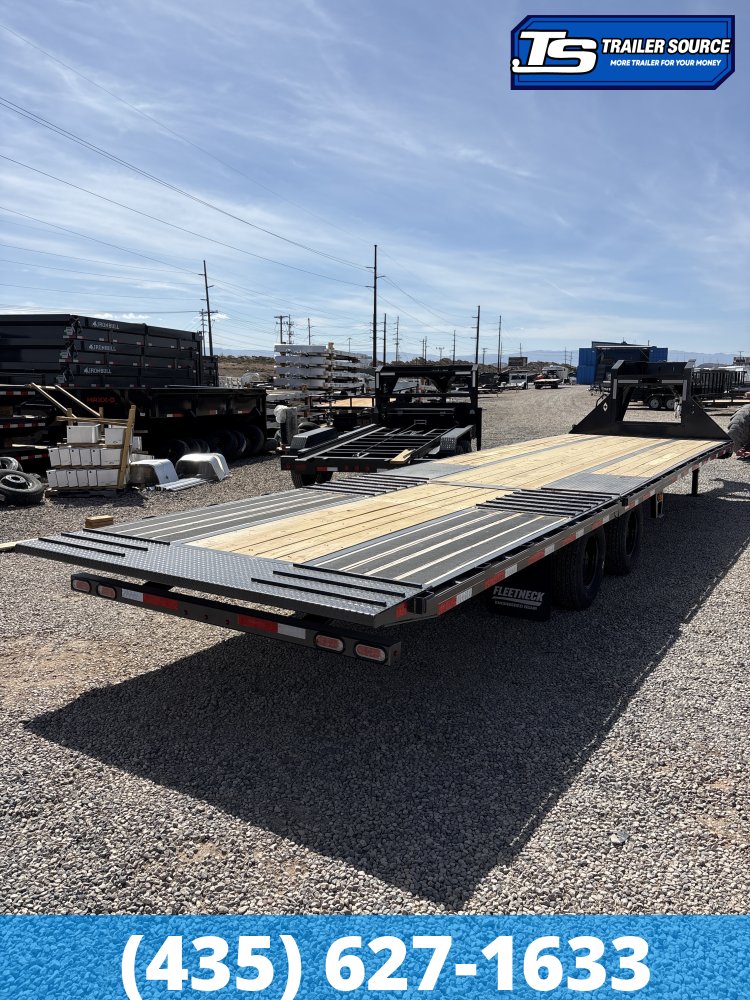

The 2026 Diamond C FMAX-212 HDT (Hydraulic Dovetail) is a powerhouse in the gooseneck category, specifically designed for heavy-duty hauling with a focus on ease of loading and frame strength.

KEY STANDARD FEATURES
12' Hydraulic Dovetail
The hallmark of the HDT model is the 12-foot fully automatic hydraulic dovetail. It features a 12.5-degree approach angle, making it ideal for low-clearance equipment. It typically includes an automatic locking mechanism and a wireless remote for operation from the cab or ground.

Unlike traditional cold-formed I-beams, Diamond C uses their proprietary 16" Engineered Beam 2.0. This frame is taller and stronger where stress is highest but tapered to reduce weight where it isn’t needed, allowing for a higher payload without sacrificing durability.

30k Curt Cushion Coupler
The trailer is equipped with a 30,000 lb Curt Cushion Coupler. This square-neck coupler uses an internal rubber dampening system to reduce the "chucking" and jarring felt in the truck during transit.

Standard lighting includes all-LED tech, but the HDT specifically features:

• Bolt-on LED flood lights (2,000 lumens) for nighttime loading.

• Additional 3/4" clearance lights along the frame for high visibility.

The FMAX-212 utilizes a tandem dual-wheel configuration to support its 25,900 lb GVWR.

Tires: ST235/80R16 14-Ply Radial (Duals)

PERFECT FOR
Heavy Construction & Rental Equipment
This trailer is the gold standard for moving "low-slung" or heavy machinery. The 12.5-degree approach angle of the hydraulic dovetail is a lifesaver for:

• Scissor Lifts and Forklifts: Equipment with low ground clearance that usually bottoms out on traditional ramps.

• Mid-sized Excavators and Backhoes: The Engineered Beam handles the concentrated point-load of tracks and buckets easily.

• Paving Equipment: Rollers and pavers transition smoothly onto the deck without jarring the hydraulics.

Agricultural & Farm Operations
For a large-scale farm, the versatility of the HDT is unmatched:

• Dual-Purpose Hauling: You can load a tractor on the back, but once the dovetail is raised, it becomes a flat 32’ to 40’ deck. This allows you to haul hay bales, IBC totes, or palletized seed across the entire length of the trailer.

• Implement Transport: Perfect for wide drills or discs that require a stable, wide platform.

Hotshot Trucking & Logistics
Professional haulers love the FMAX-212 because "time is money," and this trailer is built for high-frequency use:

Rapid Loading: You can deploy the tail, load, and lock it in under a minute without ever lifting a heavy ramp.

Reliability: The SolarPulse system and 14-ply tires are designed for guys who put 50,000+ miles on a trailer annually.

Versatile Freight: It can take a lumpy load of pipe one day and a fleet of cars the next.

WHY DIAMOND C? (The FMAX-212 Advantage)

Frame: Engineered Beam vs. Standard I-Beam

• The Competitor: Most brands use a standard 12" or 14" mill-rolled I-beam. To make it stronger, they have to use a heavier beam, which eats into your legal payload.

• The Diamond C Advantage: The Engineered Beam 2.0 is laser-cut and fabricated in-house. It is taller in the center (up to 16") where the stress is highest and tapered at the ends.

• The Result: You get a trailer that is lighter (often by 500–1,000 lbs) but has a higher yield strength (50,000–100,000 PSI steel vs. the industry standard 36,000 PSI).

The Neck: Curved vs. Welded 90-Degree

• The Competitor: Traditional goosenecks are made by welding two I-beams at a 90-degree angle with a "gusset" plate. This creates a concentrated stress point where cracks often form over years of heavy use.

• The Diamond C Advantage: The Curved Gooseneck design uses a continuous piece of steel that distributes the force throughout the neck rather than focusing it on a single weld. It also provides more clearance for your truck bed.

The Dovetail: 12' Hydraulic vs. 10' or 8' Manual/Hydraulic

• The Competitor: Many brands offer a 10' hydraulic tail or manual flip-over ramps. A shorter tail means a steeper approach angle, which can high-center a scissor lift or forklift.

• The Diamond C Advantage: The 12' length allows for a incredibly low 12.5-degree approach angle. Furthermore, the Diamond C tail is rated to lift and carry 10,000 lbs of distributed weight, whereas many competitor tails are "load only" and cannot support significant weight while driving.

Finish: DM Coating System vs. Standard Powder Coat

• The Competitor: Standard powder coating often skips the intensive "wash and etch" phases to save money. This leads to the "spiderweb rust" you see under the paint after just one winter.

• The Diamond C Advantage: Their "Difference Maker" (DM) system is a 6-step process including a shot-blast to bare metal, an acid wash, a phosphate treatment, and a specialized primer before the final powder coat. It is designed to withstand the "sandblasting" effect of gravel roads.
