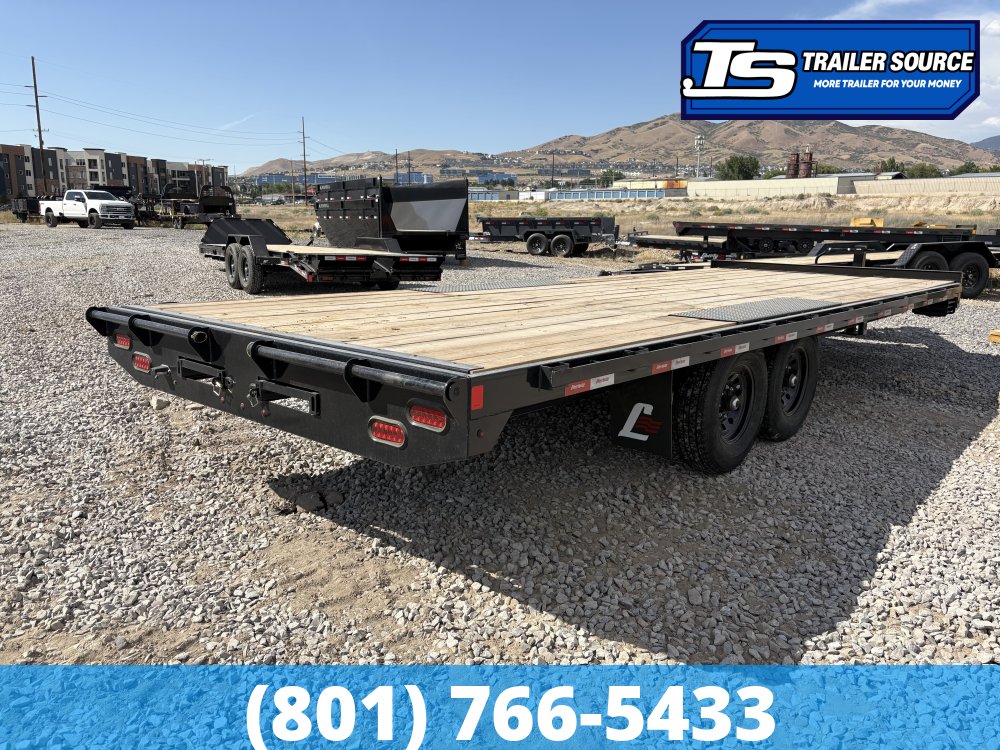

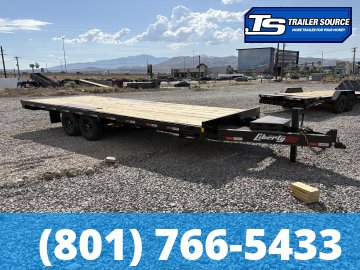

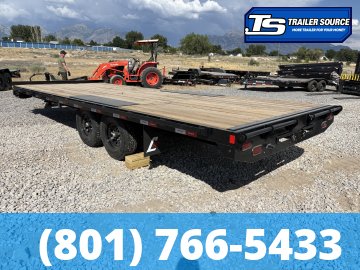

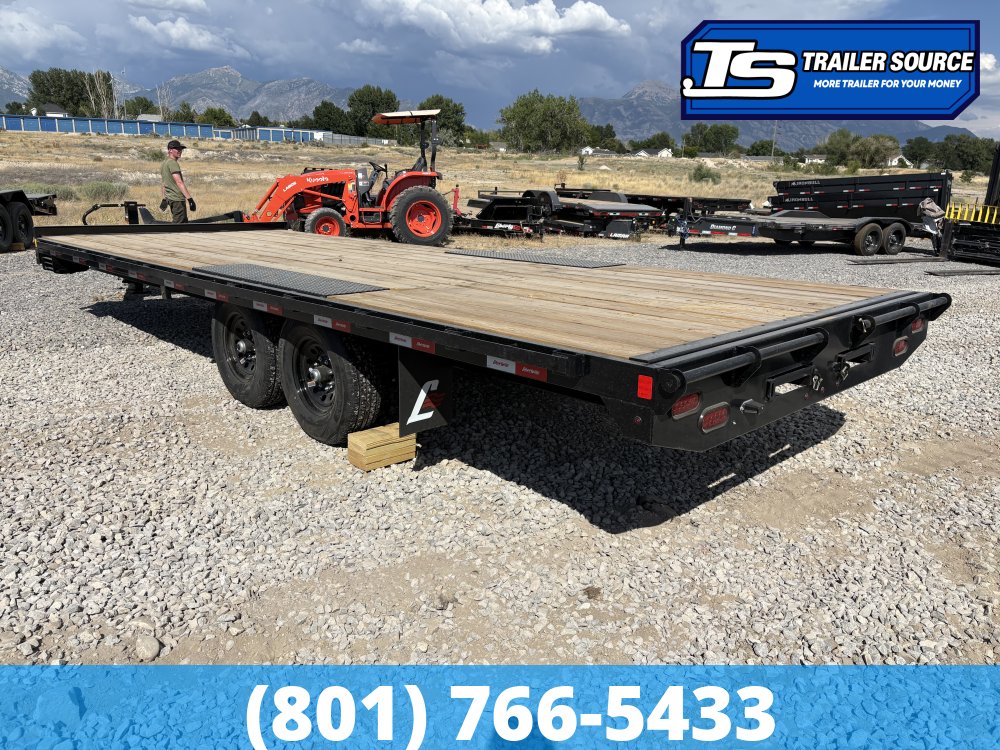

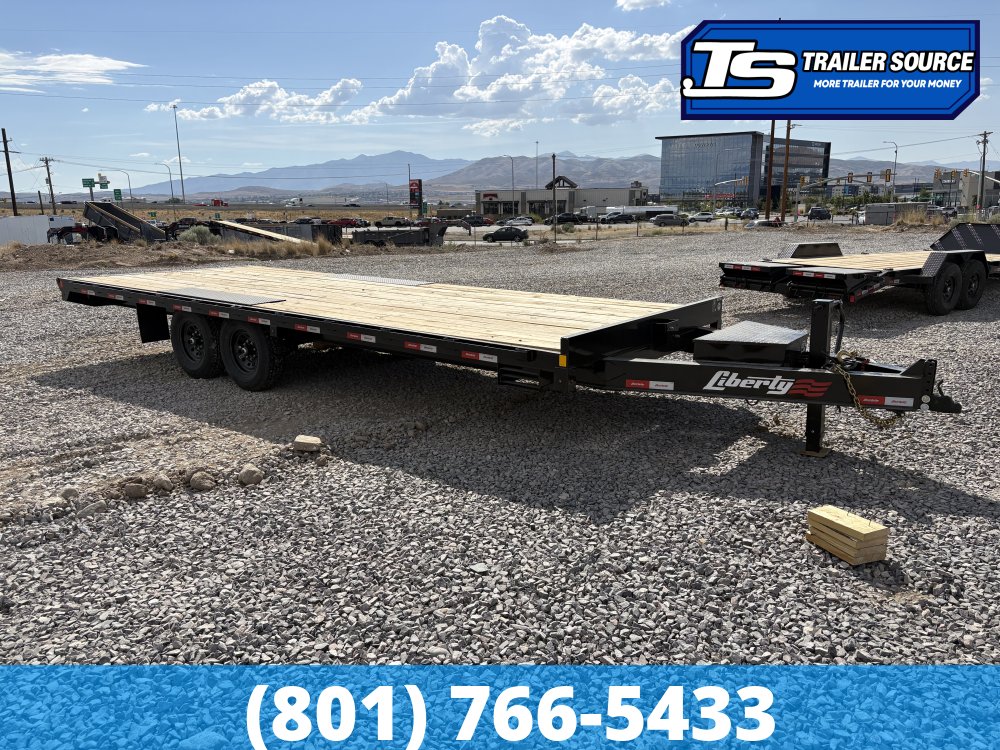

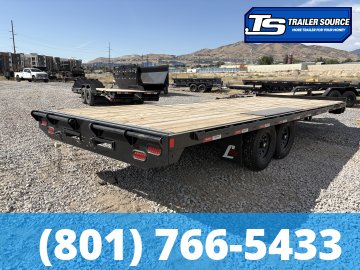

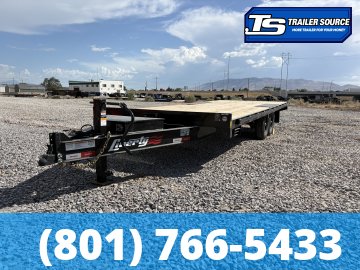

The Liberty LOA14K is a heavy-duty, commercial-grade deckover equipment trailer designed for maximum load space and extreme hauling durability. By eliminating the wheel wells and raising the platform completely above the tires, the LOA14K provides a massive, unobstructed 102" wide deck. It is specifically engineered for contractors, farmers, and hotshot haulers who need to load wide equipment, palletized freight, or multiple machines from the side with a forklift.

12" Heavy-Duty Structural I-Beam Frame & Tongue

While budget deckovers rely on smaller 8" or 10" channels, Liberty builds the LOA14K on a continuous 12" structural I-beam main frame and matching 12" I-beam tongue.

• The Benefit: This massive backbone eliminates deck sagging and twisting under heavy, concentrated loads (such as mid-sized excavators, tractors, or skid steers). The continuous I-beam design transfers stress evenly from the hitch point through the axles, drastically extending the life of the trailer.

Dual 7,000 lb Dexter® E-Z Lube Axles (14K/15.4K GVWR)

The trailer comes standard with the industry's highest-regarded axle system, paired with heavy-duty 5-leaf slipper spring suspension.

• The Benefit: This delivers a rugged payload capacity of roughly 9,500 to 11,000 lbs depending on the deck length. Slipper springs handle the harsh bouncing of empty transport much better than standard springs, while the E-Z Lube design means you can grease your bearings in minutes without taking the hubs apart.

Full 102" Deck Width with Rub Rail & Stake Pockets

The platform spans the legal maximum limit of 102 inches wide from edge to edge, lined with a heavy-duty steel rub rail and integrated stake pockets.

• The Benefit: Standard equipment trailers trap you between the fenders at 83 inches. This wide deck lets you drive equipment straight over the wheels or slide a forklift right up to the side to drop multi-stack pallets. The continuous rub rail and stake pockets offer infinite, secure anchor points along the entire perimeter.

12,000 lb Spring-Loaded Drop-Leg Jack

Standard on this frame is a massive, commercial-grade 12K drop-leg jack.

• The Benefit: No more endless cranking. The pin-release drop leg allows you to adjust the foot height instantly to adapt to different trucks or uneven terrain. The 12,000 lb capacity ensures you can uncouple and support a fully loaded trailer safely without snapping the gears.

Sherwin-Williams® Powdura Powder Coat Finish

Every Liberty trailer goes through an intensive multi-stage pre-treatment process—including sandblasting, degreasing, and an acid wash—before being finished with premium high-gloss powder coat.

• The Benefit: Liquid paint chips and peels easily, inviting rust to ruin your frame. This automotive-grade powder coat forms a thick, ultra-hard shield that resists chemical salts, rock chips, and harsh weather, keeping your investment professional-looking for years.

A-Frame Tongue Storage Box & Front Steps

The LOA14K makes smart use of space by integrating a locking tongue box directly into the front A-frame, alongside convenient steps on both sides of the front deck.

• The Benefit: This gives you a secure, weather-resistant home for your heavy tie-down chains, binders, and straps, keeping them out of the back of your truck. The front steps give you a safe, slip-resistant way to climb up onto the high deck without stretching or risking a fall.

The Liberty LOA14K is the ultimate "Wide-Load Workhorse." It is built perfectly for commercial construction teams moving earth-moving machinery, farmers hauling hay bales or implements, and logistics drivers carrying side-loaded building materials. It's ideally suited for 3/4-ton or 1-ton trucks looking to maximize bumper-pull towing limits.

Why Choose the Liberty LOA14K?

• Tail Options for Every Job: Available as a Straight Deck with 8' rear slide-in ramps (great for pallets and flat cargo) or with a 3' Dovetail and spring-assisted stand-up wedge ramps (perfect for loading low-clearance equipment).

• Premium Demco EZ-Latch Coupler: Features a 2-5/16" adjustable Demco coupler that automatically locks over the hitch ball upon dropping, ensuring a secure, hands-free coupling every single time.

• Insulated, Cold-Weather Wire Harness: The entire electrical system is run inside a fully sealed, insulated harness that stays flexible down to extreme temperatures, preventing the cracked wires and loose grounds common on cheap trailers.
