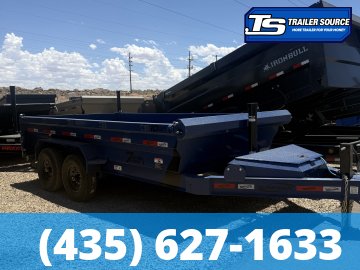

The Dura-Haul DRL Series Telescopic Low-Profile Dump Trailer represents a massive leap forward in professional-grade, severe-duty dump design. Moving away from traditional dual-piston or scissor lifts, the DRL Telescopic configuration is specifically engineered for commercial roofers, excavation contractors, and heavy aggregates haulers who need maximum tipping leverage without over-stressing the trailer's electrical and mechanical systems.

The defining evolution of this model is its forward-mounted telescopic cylinder, a mechanical design directly adapted from heavy-duty commercial dump trucks. It optimizes power placement to achieve a massive dump angle while keeping the trailer’s deck height low to the ground for stable trailering and equipment loading.

Forward-Mounted Telescopic Pin-to-Pin Hydraulic Cylinder

Unlike standard scissor hoists tucked under the middle of the bed, this unit features a multi-stage telescopic cylinder mounted vertically at the front wall of the dump box.

• The Benefit: By pushing from the very front of the box rather than the center, physics works heavily in your favor. It requires up to 50% less hydraulic pressure to lift the same weight, dramatically reducing battery drain, preventing frame twisting under uneven loads, and easily breaking stuck or frozen materials loose at a steep 45-plus degree dump angle.

Engineered Flared-Top High Capacity Box

The side walls are robotically formed from 10-gauge to 11-gauge high-strength steel, featuring a highly unique structural design.

• The Benefit: Dura-Haul's engineered sides are built one foot wider at the top than at the bottom. This flared-top profile maximizes your cubic yard capacity without widening the wheelbase, while creating a natural "slide out" geometry that prevents thick clay, mud, or sticky demolition debris from getting wedged against the side rails during a dump cycle.

8-Inch Structural I-Beam Main Frame

The backbone of the DRL trailer relies on a continuous, heavy-duty 8-inch I-beam chassis backed by closely spaced 3-inch structural channel crossmembers.

• The Benefit: This creates massive torsional rigidity. The frame easily handles the violent shifting forces of sliding aggregates or the punishing point-loads of a heavy mini-excavator driving over the tail tail gate.

7-Gauge Solid Steel Floor Smooth Plate

The floor of the dump box is fabricated using a single sheet of ultra-dense 7-gauge steel.

• The Benefit: Standard dump trailers use thin 10-gauge or 12-gauge floors that warp, oil-can, and dent when loaders drop heavy concrete chunks or large rocks. The 7-gauge smooth plate provides ultimate puncture and dent resistance, ensuring your floor stays flat for clean material sliding over years of commercial abuse.

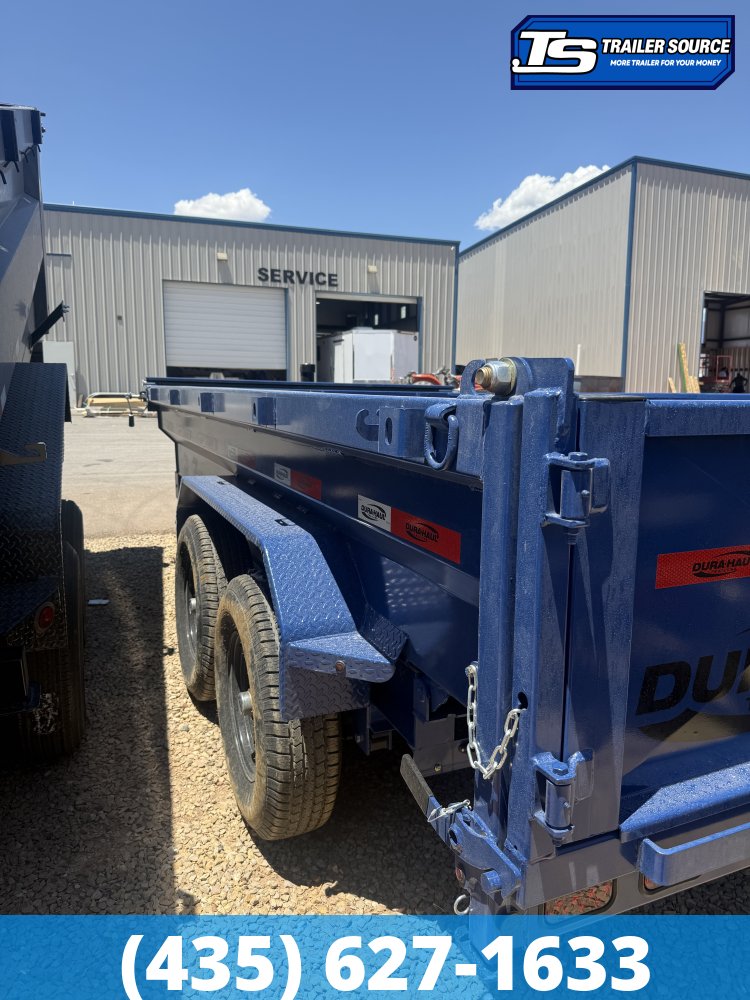

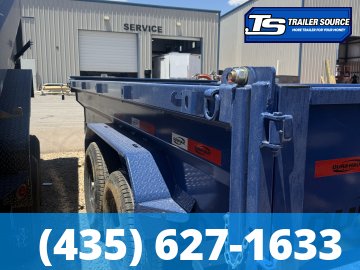

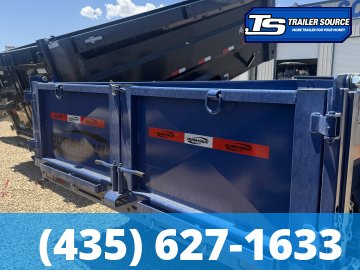

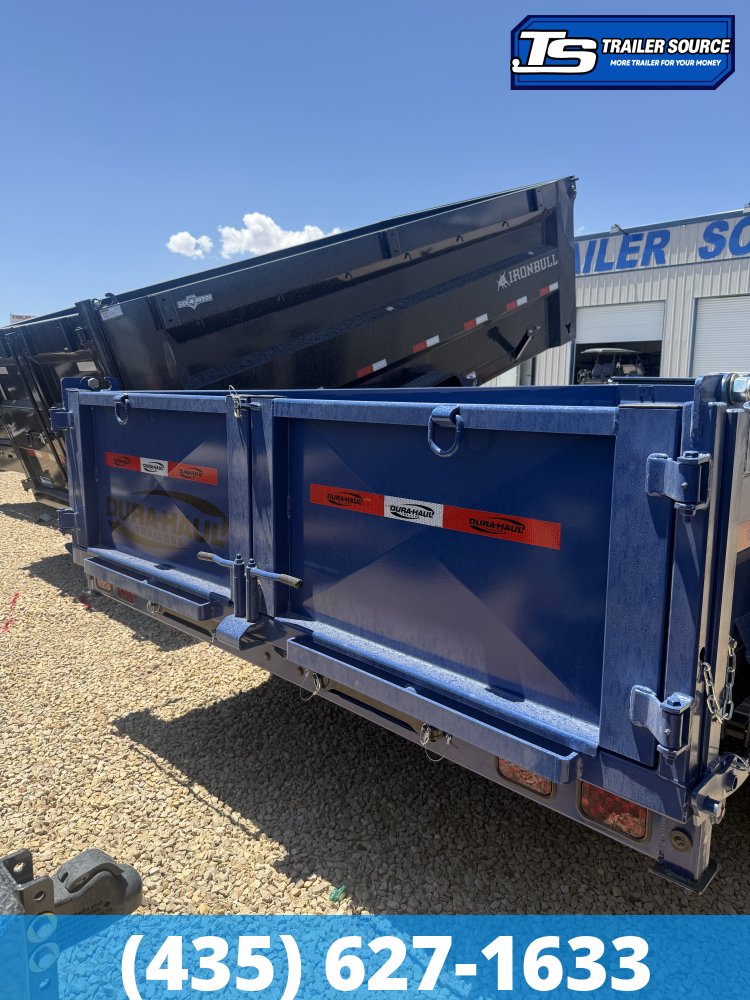

Dual-Motion Barn Door / Spreader Tailgate System

The rear gate is engineered with a multi-functional commercial latch configuration.

• The Benefit: It operates flawlessly in two modes. It can open outward as traditional dual barn doors to cleanly clear large items like tree stumps and concrete blocks, or it can be pinned from the top to act as a gravel spreader gate, allowing you to lay down perfect, metered layers of rock or topsoil while driving.

Under-Bed Slide-In Ramps & 4 Integrated D-Rings

The dump box pulls double duty as a heavy equipment transport vehicle.

• The Benefit: Heavy-duty loading ramps slide out from dedicated storage pockets under the rear frame lip and hook onto the trailer bed in seconds. Paired with four frame-welded, heavy-duty D-rings inside the box, you can seamlessly drive your skid steer, tractor, or excavator straight into the bed and secure it safely for transit.

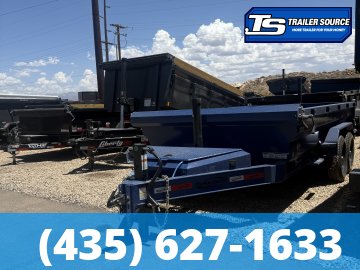

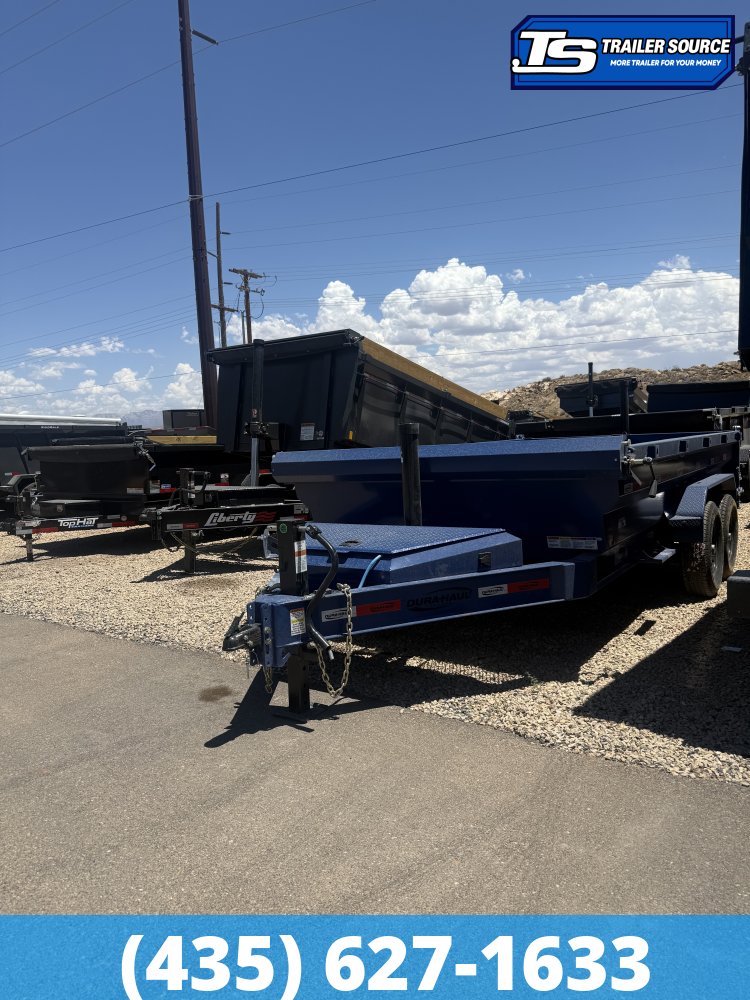

Lockable Pump Box & Built-In Battery Charger

The electrical and power-delivery core is shielded from external elements and job site theft.

• The Benefit: A generous front-mounted steel toolbox houses a premium KTY hydraulic pump, a heavy-duty deep-cycle marine battery, and the corded controller. It features a built-in 110V trickle-charging plug, allowing you to easily refresh the battery overnight by plugging it into a standard garage outlet.

• GVWR: 16,100

• Bed Dimensions: 7 FT (84") Useable Width x 14' to 16' Long Layouts.

• Wall Heights: 2 FT (24") Standard Sides or 4 FT (48") High-Sided Trash/Demolition Packages.

• Running Gear: Tandem 7,000 lb. or 8,000 lb. Quick-Lube Axles with heavy-duty multi-leaf spring suspension.

• Floor & Sides: Extreme-duty 7-Gauge Floor Plate with 11-Gauge Formed Walls.

• Hitch Setup: Adjustable 2 5/16" coupler with a 12,000 lb. spring-loaded drop-leg jack.

• Elimination of "Dead-Spot" Stress: Scissor lifts sit flat under the bed and try to push up at a massive mechanical disadvantage during the first 10 degrees of a dump cycle, causing extreme voltage spikes and structural strain. The telescopic ram pushes forward and up instantly, picking up the load effortlessly from the word "go".

• Zero Under-Bed Frame Clutter: Because the cylinder is located on the tongue/front wall, the entire belly of the trailer is completely clean. This means your hydraulic lines and shafts never risk getting snared or crushed by rocks, tree stumps, or deep mud on rugged commercial landfills.

• Flared Efficiency: The one-foot wider flared-top side walls yield significantly more volume per foot of length than vertical-walled competitors without turning your trailer into a wide-load towing hazard.

The Dura-Haul DRL Telescopic Dump Trailer is the premier tool for Roofing Contractors, Land-Clearing Operators, Masonry Teams, and Commercial Excavators. It is built explicitly for professionals who want a low-profile, dual-purpose equipment hauler and dump rig that completely deletes the mechanical failures and battery drain of traditional scissor hooks, running flawlessly on the most grueling job sites.
